Up to 500G Extraction. Up to 50% Less Drying Time.

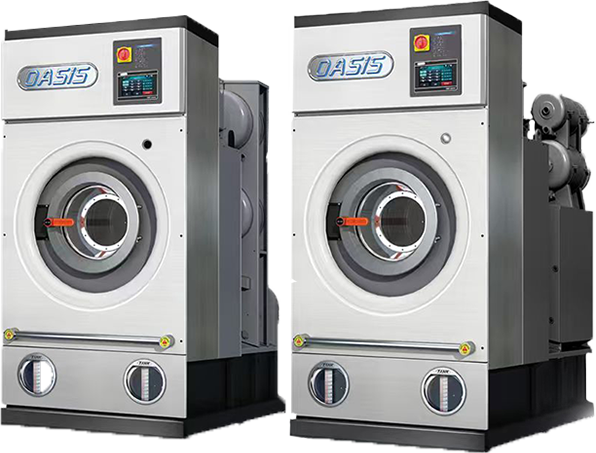

Softmount Perchloroethylene Dry Cleaning Machine
Slim-body design allows easy installation in locations with limited access and narrow doorways.
12KG
Capacity
500G
Extraction Force
Dry Cleaning
Applications

TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability

DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features
Energy Savings
The advanced suspension system delivers extraction forces of up to 500G, removing more moisture before drying. This can reduce drying time by up to 50% while lowering steam and electricity consumption.
Flexible Installation
The softmount design eliminates the need for a concrete foundation. By absorbing up to 95% of vibration, the machine operates smoothly on standard floors and simplifies installation.
High Cleaning Efficiency
Multiple filtration systems help prevent color transfer, improve solvent cleanliness, and reduce distillation time. The axial high-speed airflow system accelerates drying while minimizing lint accumulation on garments.
Superior Hygiene
An integrated self-cleaning system helps eliminate residual solvent odors. The combined action of solvent, detergent, and water effectively removes both oil-based and water-based stains for improved cleaning results.
Built for Long-Term Reliability
Critical components including the tanks, drum, distiller, and piping are constructed from stainless steel for maximum durability. Premium bearings and drive components reduce maintenance requirements, while the suspension system minimizes bearing wear during high-speed extraction.
Easy Operation
The intuitive icon-based control interface eliminates language barriers and simplifies staff training. Operators can select preset programs with a single touch, switch between automatic and manual modes, and activate automatic self-cleaning functions. Slim models are available for installations requiring passage through narrow doorways.
| Perchloroethylenedry Softmount Dry Cleaning Machine | |||||||
|---|---|---|---|---|---|---|---|
| unit | P160X | P203Z | P203X | P273X | P530X | P1000X | |
| Capacity | kg | 8 | 12 | 12 | 15 | 30 | 50 |
| Volume | L | 167 | 203 | 203 | 273 | 527 | 1013 |
| Cylinder diameter | mm | 683 | 683 | 683 | 774 | 990 | 1240 |
| Cylinder depth | mm | 455 | 550 | 550 | 580 | 685 | 840 |
| Wash speed | rpm | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 28-38 |
| Extract speed | rpm | 970 | 880 | 880 | 830 | 750 | 660 |
| Solvent tank 1 | L | 110 | 110 | 122 | 169 | 236 | 362 |
| Solvent tank 2 | L | 110 | 110 | 122 | 169 | 236 | 362 |
| Solvent tank 3 | L | 108 | 121 | 120 | 215 | 287 | 438 |
| Distillation tank | L | 122 | 140 | 140 | 231 | 374 | 536 |
| Filter capacity | L | 29+35 | 29+35 | 29+35 | 59+57 | 59+57 | 59+57 |
| Washing motor | kw | 4 | 4 | 4 | 5.5 | 11 | 22 |
| Solvent pump motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Fan motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 3.0 |
| Compressor motor | kw | 2.1 | 2.6 | 2.6 | 4.5 | 6.6 | 7.6 |
| Filter motor | kw | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Carbon absorber fan | kw | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.37 |
| Distillation heating power* | kw | 6.9 | 6.9 | 6.9 | 8.4 | \ | \ |
| Drying heating power* | kw | 6.9 | 6.9 | 6.9 | 6.9 | \ | \ |
| Inlet | ″ | 3/4" | 3/4" | 3/4" | 1 | 1 | 1 |
| Drain | ″ | 3/4" | 3/4" | 3/4" | 1 | 1 | 1 |
| Steam inlet | ″ | 1/2" | 1/2" | 1/2" | 1/2" | 3/4 | 3/4 |
| Steam outlet | ″ | 1/2" | 1/2" | 1/2" | 1/2" | 3/4 | 3/4 |
| Compressed air | mm | ф8 | ф8 | ф8 | 8 | 8 | 8 |
| Width | mm | 1540 | 980 | 1540 | 1950 | 2300 | 2470 |
| Depth | mm | 1365 | 2050 | 1460 | 1718 | 1905 | 2266 |
| Height | mm | 1950 | 2000 | 1948 | 2247 | 2380 | 2713 |
| Packing Width | mm | 1640 | 1080 | 1640 | 2050 | 2400 | 2570 |
| Packing Depth | mm | 1465 | 2150 | 1560 | 1818 | 2005 | 2366 |
| Packing Height | mm | 2050 | 2100 | 2048 | 2347 | 2480 | 2813 |
| * Apply for electric heating models only. | |||||||
| OASIS preserves the right to change the machines and specifications at any time without prior notice. | |||||||
Customer Installations






WHY CHOOSE OASIS
FACTORY STRENGTHYOU CAN TRUST
With advanced manufacturing equipment and、strict quality control, OASlS provides reliable laundry equipment to customers worldwide







FAQ
VIEW ALL
500G
High extraction at 500G forces out maximum liquid solvent from garments prior to the drying cycle. Less residual solvent means the heat pump and steam coil need up to 50% less drying time, drastically lowering hourly electricity and steam consumption per load.
Axial airflow directs heated air straight through the tumbling clothes from back to front, ensuring fast, uniform solvent evaporation while continuously blowing lint off garments into the lint filter, leaving clothes crisp and lint-free.
YES
2 years
45 days
