ZD3300V

Automatic Folder

Increase linen processing efficiency while reducing labor costs and manual handling.

Automatic Folding System
Multi-Lane Processing (1-4 Lanes)
Automatic Stacking Output

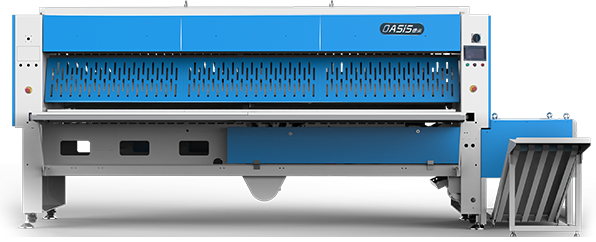

Flatwork Folder With Stacker ZD3300V

TECHNICAL SPECIFICATIONS

Engineered for efficiency. Built for durability

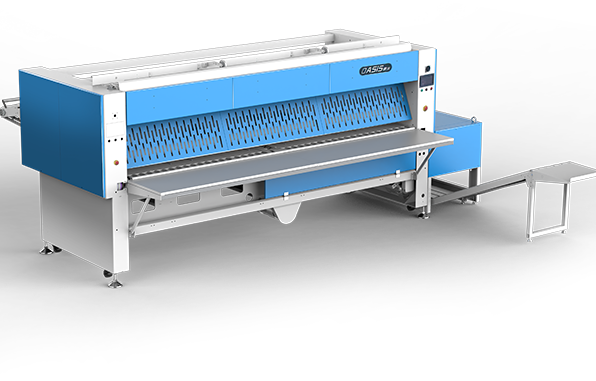

oasis Flatwork Folder With Stacker ZD3300V

DOWNLOAD FULL DATASHEET

Get the complete technical specifications, detailed drawings and more.

Product Features

The ZD3300V Flatwork Folder with Stacker is designed to automate the folding and stacking of flat linens, helping commercial laundry facilities improve productivity, reduce labor requirements, and maintain consistent folding quality.

Available in one-lane or four-lane configurations, the system automatically measures linen dimensions and selects the appropriate folding sequence for accurate processing. Advanced photoelectric sensors and intelligent controls optimize folding performance across a wide range of linen sizes and thicknesses.

The integrated stacker automatically collects and organizes finished linens, reducing manual handling and streamlining workflow. Ideal for hotels, hospitals, commercial laundries, and linen rental operations, the ZD3300V delivers reliable, high-volume linen finishing performance.

ModelZD3300V
Working Widthmm3300
Max. Folding number5
Max. Folding speedm/min50
Total powerkW1.8
Compressed air inletmm¢12
Compressed airmpa﹥0.6
Air consumptionliter/min500
Power Supply380V/50Hz/3Ph
Dimension - Folder
Lengthmm4376
Widthmm3145
Heightmm1860
Net Weightkg2310
Dimension - Stacker
Lengthmm3100
Widthmm830
Heightmm900
Net Weightkg240

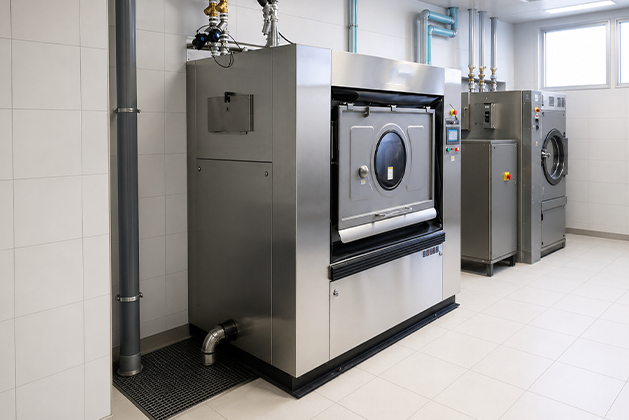

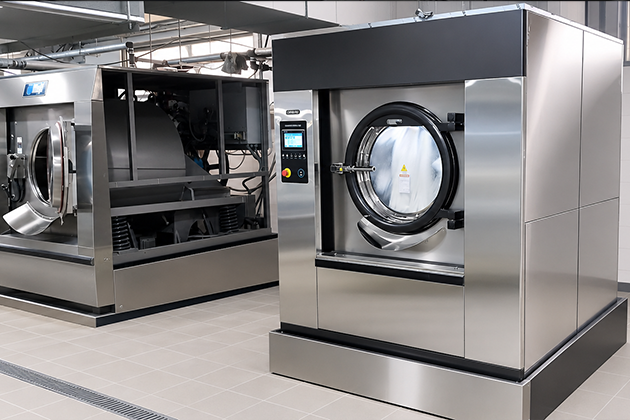

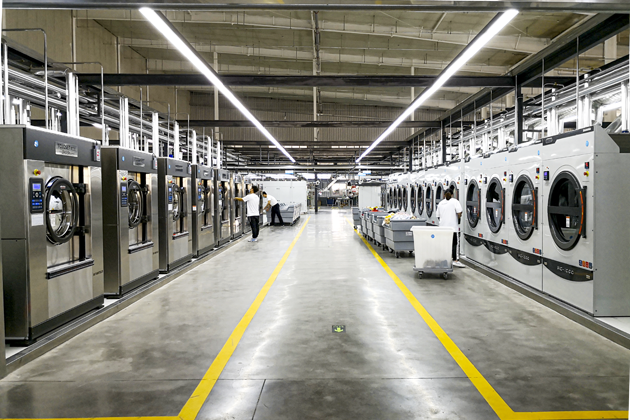

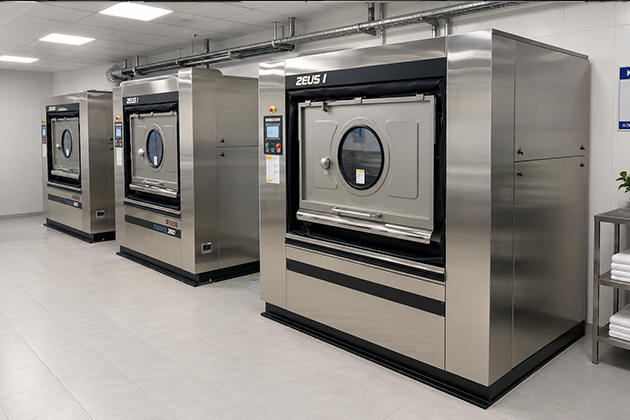

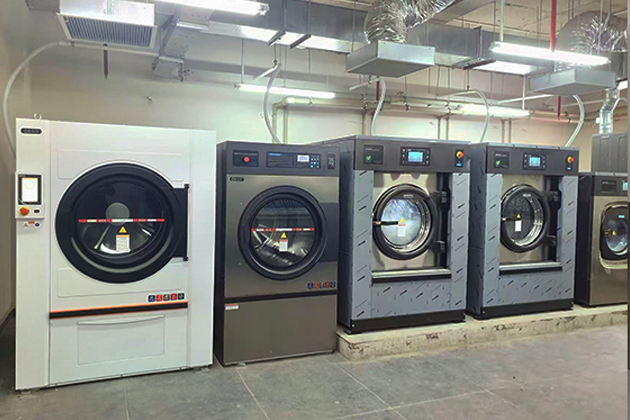

Customer Installations

WHY CHOOSE OASIS

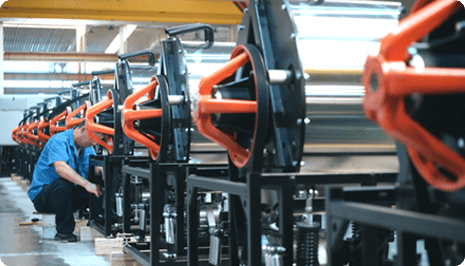

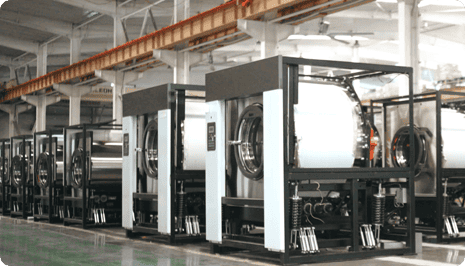

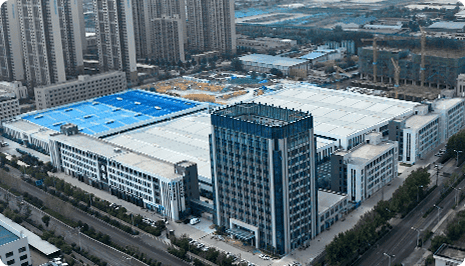

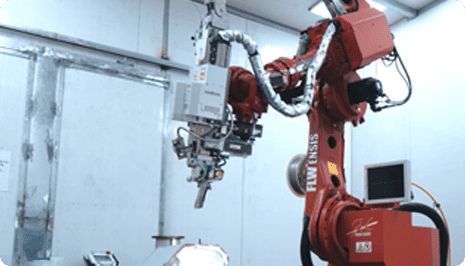

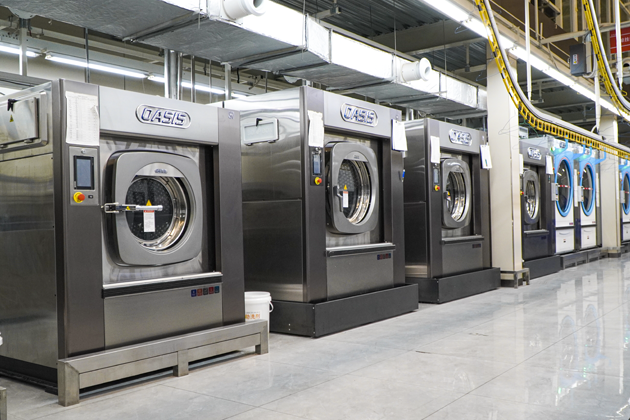

FACTORY STRENGTHYOU CAN TRUST
