Up to 500G Extraction. Up to 50% Less Drying Time.

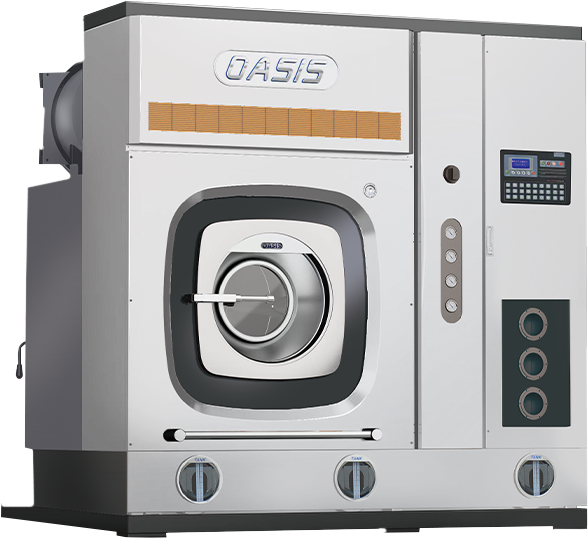

Softmount Multi Solvent Dry Cleaning Machine
Up to 500G extraction reduces drying time by up to 50% while lowering energy consumption.
Designed for efficient stain removal, fabric protection, and long-term reliability.
8-50KG
Capacity
500G
Extraction Force
Dry Cleaning
Applications

TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability

DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features
The 8–50kg Softmount Perchloroethylene Dry Cleaning Machine is designed for professional dry cleaning operations requiring superior cleaning performance, energy efficiency, and installation flexibility. Its advanced softmount suspension system enables extraction forces of up to 500G, significantly reducing drying time and lowering steam and electricity consumption.
Engineered for dry cleaning shops, garment care centers, hotel dry cleaning departments, and textile service providers, the machine combines powerful stain removal with enhanced fabric protection. Multiple filtration systems minimize color transfer and improve solvent purity, while the self-cleaning design helps eliminate residual solvent odors and simplifies daily maintenance.
Built with stainless steel tanks, drums, distillers, and piping, the machine delivers long-term durability and reliable performance. The intuitive icon-based control system allows easy operation without language barriers, making it an ideal solution for modern dry cleaning businesses seeking efficiency, hygiene, and reduced operating costs.
| Hydrocarbon Softmount Dry Cleaning Machine | ||||||
|---|---|---|---|---|---|---|
| unit | HMS203Z | HMS203X | HMS273X | HMS530X | HMS1000 | |
| Capacity | kg | 12 | 12 | 15 | 30 | 50 |
| Volume | L | 203 | 203 | 273 | 530 | 1013 |
| Cylinder diameter | mm | 683 | 683 | 774 | 990 | 1240 |
| Cylinder depth | mm | 550 | 550 | 580 | 685 | 840 |
| Wash speed | rpm | 30-40 | 30-40 | 30-40 | 30-40 | 28-38 |
| Extract speed | rpm | 880 | 880 | 830 | 750 | 660 |
| Solvent tank 1 | L | 110 | 115 | 169 | 236 | 311 |
| Solvent tank 2 | L | 110 | 115 | 169 | 236 | 311 |
| Solvent tank 3 | L | 121 | 134 | 215 | 237 | 377 |
| Distillation tank | L | 144 | 144 | 230 | 396 | 540 |
| Filter capacity | L | 29+35 | 29+35 | 59+57 | 59+57 | 59+57 |
| Washing motor | kw | 4 | 4 | 5.5 | 11 | 22 |
| Solvent pump motor | kw | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Fan motor | kw | 1.5 | 1.5 | 1.5 | 2.2 | 3.0 |
| Compressor motor | kw | 2.6 | 2.6 | 4.5 | 6.6 | 7.6 |
| Filter motor | kw | 0.12 | 0.12 | 0.12 | 0.12 | 0.2 |
| Vacuum pump | kw | 1.5 | 1.5 | 1.5 | 1.5 | 0.75 |
| Distillation heating power* | kw | 6.9 | 6.9 | 8.4 | \ | \ |
| Drying heating power* | kw | 6.9 | 6.9 | 6.9 | \ | \ |
| Inlet | ″ | 3/4" | 3/4" | 1" | 1" | 1 |
| Drain | ″ | 3/4" | 3/4" | 1" | 1" | 1 |
| Steam inlet | ″ | 1/2" | 1/2" | 1/2" | 3/4" | 3/4 |
| Steam outlet | ″ | 1/2" | 1/2" | 1/2" | 3/4" | 3/4 |
| Compressed air | mm | ф8 | ф8 | ф8 | ф8 | 8 |
| Width | mm | 980 | 1540 | 1950 | 2300 | 2470 |
| Depth | mm | 2050 | 1460 | 1718 | 1905 | 2195 |
| Height | mm | 2000 | 1948 | 2247 | 2380 | 2630 |
| Packing Width | mm | 1080 | 1640 | 2050 | 2400 | 2570 |
| Packing Depth | mm | 2150 | 1560 | 1818 | 2005 | 2295 |
| Packing Height | mm | 2100 | 2048 | 2347 | 2480 | 2730 |
| * Apply for electric heating models only. | ||||||
| OASIS preserves the right to change the machines and specifications at any time without prior notice. | ||||||
Customer Installations






WHY CHOOSE OASIS
FACTORY STRENGTHYOU CAN TRUST
With advanced manufacturing equipment and、strict quality control, OASlS provides reliable laundry equipment to customers worldwide







FAQ
VIEW ALL
500G
No. The heavy-duty suspension system absorbs over 95% of dynamic vibrations, allowing installation on standard floors, upper levels, or shops without deep concrete foundations.
Yes. It is engineered as a Multi-Solvent platform that can be configured for Perchloroethylene (PERC) or modern hydrocarbon/silicone-based eco-solvents, offering operational flexibility as environmental regulations evolve.
YES
2 years
45 days
