SXT1000F SXTQ1000F SXT1200F SXTQ1200F

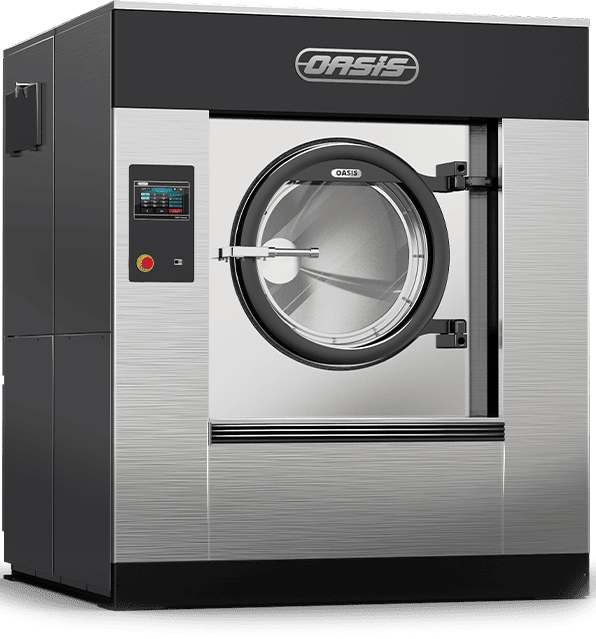

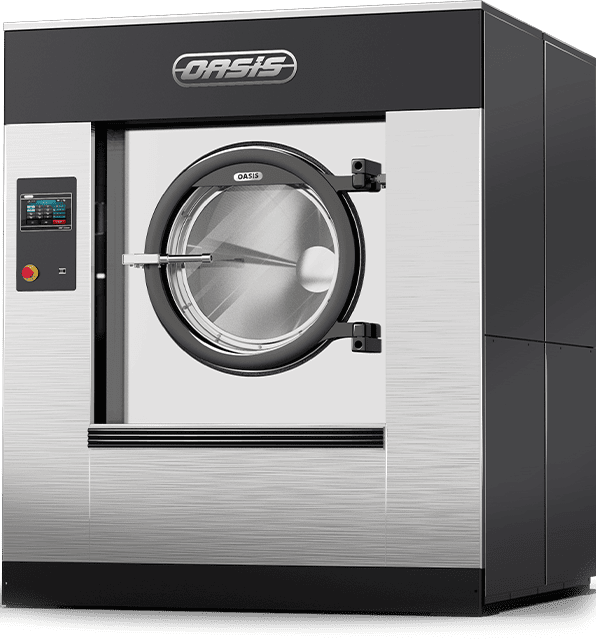

120KG Softmount Washer Extractor
The 120kg Softmount Washer Extractor is built for high-volume laundry operations that require maximum productivity, stable performance, and efficient bulk textile processing. It is engineered for continuous daily operation in demanding industrial environments.
It is ideal for large commercial laundry plants, hospitality groups, healthcare laundry facilities, linen service companies, and industrial uniform washing operations.
120KG
Capacity
350G
Extraction Force
OPL
Applications
TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability
DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features
1.Stainless steel drum, tub, and door
2.Clad steel panels resist rust and fingerprints, optional stainless steel
3.The uniquely designed 3D stereoscopic honeycomb-shaped inner drum with perforated lifters
4.Permanently lubricated bearings
5.Heavy duty suspension system, working with an intelligent electronic balancing system
6.5 removable chemical compartments and 5 hoses for dosing pump.
7.Mechanical and electronic double door lock and emergency stop
8.Heavy duty pnueumatic water valves, drain valves and steam valves
9.Advanced inverter drive system
| Specifications | SXT1200F | SXTQ1200F | |
|---|---|---|---|
| Control | Touch | Touch | |
| Capacity 1:9-10 | kg | 120 | 120 |
| Cylinder Diameter | mm | 1310 | 1310 |
| Cylinder Depth | mm | 816 | 816 |
| Volume | liter | 1100 | 1100 |
| Door Center to Floor | mm | 1246 | 1441 |
| Cold Water Inlet | inch | 2 | 2 |
| Hot Water Inlet | inch | 2 | 2 |
| Steam inlet | inch | 1 | 1 |
| Compressed airinlet* | mm | 8 | 8 |
| Drain Diameter | mm | 2*125 | 2*125 |
| Motor Power | kW | 11 | 11 |
| Three-phase heating power | kW | 60 | 60 |
| Extract Speed | RPM | 691 | 691 |
| G-Force | 350 | 350 | |
| Power Supply | 380V/50Hz/60Hz/3ph | ||
| Contact us for other voltages | |||
| Overall Width | mm | 1774 | 1850 |
| Overall Depth | mm | 1828 | 1895 |
| Overall Height | mm | 2092 | 2290 |
| Net Weight | kg | 3220 | 3480 |
| Packing Width | mm | 1874 | body:1950/tilting base:1950 |
| Packing Depth | mm | 1928 | 1995/tilting base:800 |
| Packing Height | mm | 2242 | 1690/tilting base:750 |
| *Compressed air inlet only applies to steam heating models. | |||
| Oasis preserves the right to change the machines and the specification at any time without prior notice. | |||
Customer Installations
WHY CHOOSE OASIS
FACTORY STRENGTHYOU CAN TRUST
With advanced manufacturing equipment and、strict quality control, OASlS provides reliable laundry equipment to customers worldwide
FAQ
VIEW ALL
350G
Yes. The drum, tub, and door are all made of heavy-duty stainless steel, while the cabinet uses clad steel panels designed specifically to resist rust, chemical corrosion, and finger marks for long-term premium aesthetics and durability.
Yes. The controller supports multi-lingual switching (English, Spanish, French, Russian, Arabic, etc.) for intuitive operation by global laundry staff.
YES
2 years
45 days
