YP3300VZ/R

Roll Heated Ironer

Deliver consistently smooth, high-quality linens with maximum productivity.

Available with up to six rollers to match different production capacities and finishing requirements.

Commercial Laundry Plants
Hotels & Resorts
Hospitals
Linen Rental Services
Industrial Laundry Operations

TECHNICAL SPECIFICATIONS

Engineered for efficiency. Built for durability

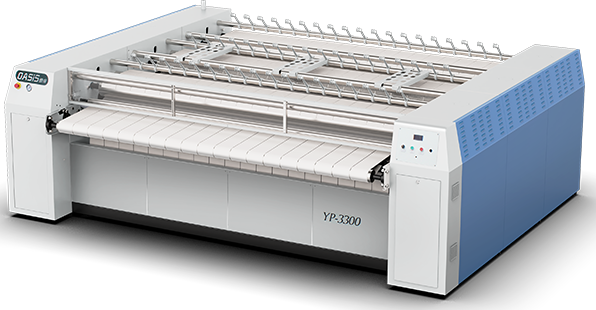

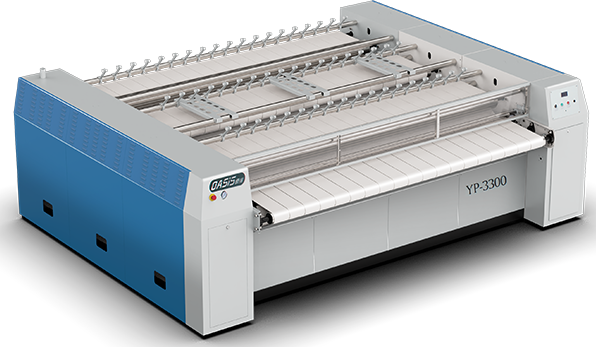

3.3 Meters 5 Rolls Flatwork Ironer YP3300VZ_R

DOWNLOAD FULL DATASHEET

Get the complete technical specifications, detailed drawings and more.

Product Features

The YP3300VZ/R 3.3-Meter Flatwork Ironer is designed for high-volume commercial and industrial laundry operations requiring consistent ironing quality, high productivity, and reliable performance.

Featuring a durable multi-roll design with intelligent temperature and speed control, the system automatically optimizes ironing parameters based on linen type and moisture levels. Stainless steel rollers and high-temperature-resistant ironing belts ensure long service life and dependable operation under continuous workloads.

Available with up to six rollers, the YP3300VZ/R delivers excellent finishing quality for bed sheets, duvet covers, pillowcases, table linens, and other flatwork textiles. It is an ideal solution for commercial laundries, hotels, hospitals, and linen rental operations seeking greater throughput and lower labor costs.

Model		YP3000	YP3000II	YP3000III	YP3000IV	YP3000V	YP3000VI
Working Width	mm	3000
Roller Diameter	mm	800
Roller Number		1	2	3	4	5	6
Drive motor	kW	1.5	2.2	2.2	2.2X2	2.2X2	2.2X2
Ironing Speed	mm/min	0-10	0-20	0-30	0-40	0-50	0-60
		Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating
Steam inlet	inch	3/4	1 ½	1 ½	1 ½	1 ½	1 ½
Steam outlet	inch	1 ¼	1 ¼	1 ¼	1 ¼	1 ¼	1 ¼
Steam Pressure	mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
		Gas Heating	Gas Heating	Gas Heating	Gas Heating	Gas Heating	Gas Heating
Gas inlet	″	1 ¼	1 ¼X2	1 ¼X3	1¼X4	1 ¼X5	1 ¼X6
Exhaust	mm	7-9	7-9	7-9	7-9	7-9	7-9
Gas pressure	kpa	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5
		Dimensions	Dimensions	Dimensions	Dimensions	Dimensions	Dimensions
Length	mm	4248	4248	4248	4248	4248	4248
Width	mm	1597	2547	3497	4447	5397	6347
Height	mm	1380	1380	1380	1380	1380	1380
Net Weight, Steam	kg	1990	3400	4998	6550	8130	9714
Net Weight, Gas	kg	1606	2746	3846	5014	6210	7410

Model		YP3300	YP3300II	YP3300III	YP3300IV	YP3300V	YP3300VI
Working Width	mm	3300
Roller Diameter	mm	800
Roller Number		1	2	3	4	5	6
Drive motor	kW	1.5	2.2	2.2	2.2X2	2.2X2	2.2X2
Ironging Speed	mm/min	0-10	0-20	0-30	0-40	0-50	0-60
		Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating
Steam inlet	inch	3/4	1 ½	1 ½	1 ½	1 ½	1 ½
Steam outlet	inch	1 ¼	1 ¼	1 ¼	1 ¼	1 ¼	1 ¼
Steam Pressure	mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
		Gas Heating	Gas Heating	Gas Heating	Gas Heating	Gas Heating	Gas Heating
Gas inlet	″	1 ¼	1 ¼X2	1 ¼X3	1¼X4	1 ¼X5	1 ¼X6
Exhaust	mm	7-9	7-9	7-9	7-9	7-9	7-9
Gas pressure	kpa	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5	4.5-6.5
		Dimensions	Dimensions	Dimensions	Dimensions	Dimensions	Dimensions
Length	mm	4548	4548	4548	4548	4548	4548
Width	mm	1597	2547	3497	4447	5397	6347
Height	mm	1380	1380	1380	1380	1380	1380
Net Weight, Steam	kg	1679	2892	4065	5250	6575	7848
Net Weight, Gas	kg	2103	3740	5337	7002	8695	10392
