TCZ1400x500Ⅲ
Vacuum and Blowing Ironing Table TCZ1400x500Ⅲ
Designed for efficient pressing, stain removal, and operator comfort.
Applications:
• Dry Cleaning Shops
• Garment Care Centers
• Hotel Laundry Departments
• Uniform Processing Facilities
• Alteration & Tailoring Shops
• Apparel Manufacturing Facilities

TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability

DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features

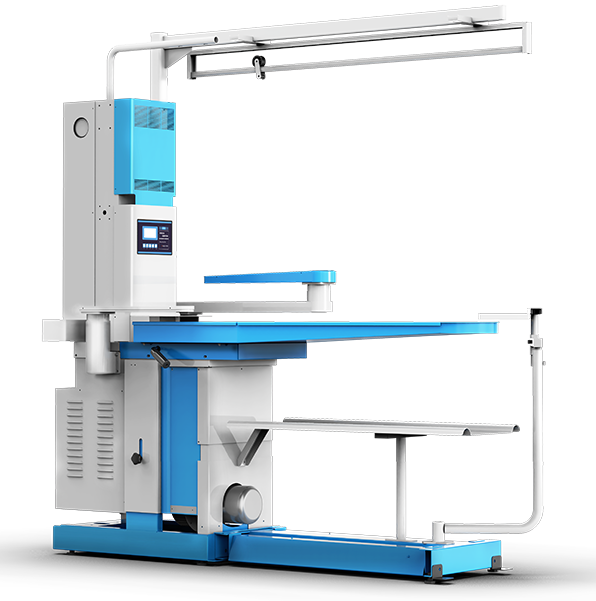

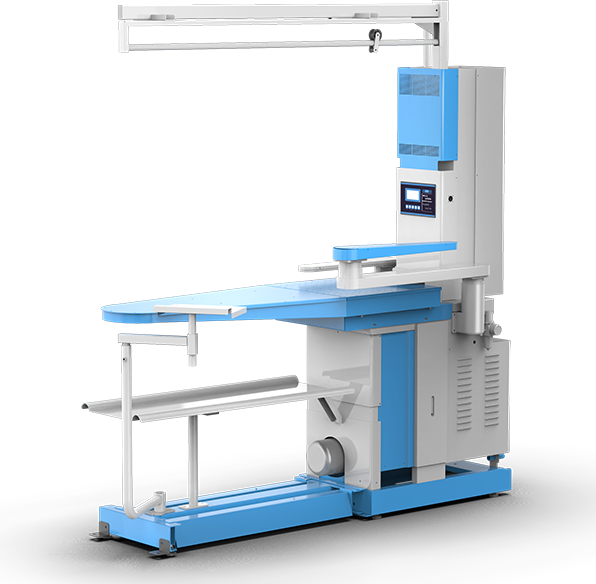

The TCZ1400×500Ⅲ Vacuum and Blowing Ironing Table is designed for professional garment finishing applications requiring superior pressing quality, operator comfort, and efficient stain removal.
Featuring a pneumatic vacuum and blowing system, the table helps achieve crisp garment finishing while improving fabric handling during pressing operations. An integrated spotting platform with steam and air guns enables quick stain treatment, while the steam electric iron system with condensate separation enhances pressing efficiency and finish durability.
Designed for continuous commercial use, the workstation includes an iron balancer, overhead gantry support, adjustable table height, and integrated lighting to improve operator comfort and productivity. It is an ideal solution for dry cleaning shops, garment care centers, hotel laundry departments, and uniform processing facilities.
| Model | TCZ1400x500 | |
|---|---|---|
| Water Pump Power | kW | 0.08 |
| Heater Power | kW | 3.5 |
| Fan Power | kW | 0.55 |
| Suction Pressure | pa | -150 |
| Blast Pressure | pa | 150 |
| Table Size | mm | 1400*500 |
| Noise≤ | dB | 78 |
| Water Consumption | liter | 3 |
| Steam Pressure | mpa | 0.3-0.6 |
| Lighting power | w | 36 |
| Installed Capacity | kW | 4.5 |
| Power Consumption | kW·h | 3/0.5 |
| Water Inlet | inch | 3/4 |
| Drain | inch | 1/2 |
| Power Input Wire | mm² | 4/2.5 |
| Power Supply | V | 220V/380V/50Hz |
| Dimensions | mm | 1900×650×2050 |
| Net Weight | kg | 190 |
