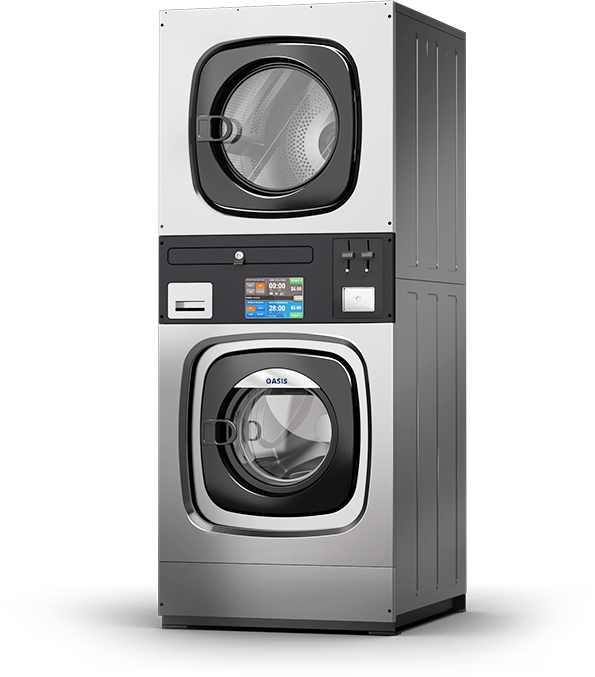

XH10F
10kg SOFTMOUNT STACKED WASHER DRYER
Heavy-Duty 300G Washer Construction
Commercial Stack Washer Dryers designed for apartments, student housing, RV parks, and small laundromats.
10 KG
Capacity
300G
Extraction Force
VEND
Applications
WHY LAUNDROMAT OWNERS CHOOSE OASIS
MAXIMIZE STORE CAPACITY
Stacked configuration doubles washing and arying capacity while reducing floor space usage.
FASTERCUSTOMER TURNOVER
High extraction performance reduces drying time and improves machine availability.
LOWER MAINTENANCE COSTS
industrial-grade components and easy-access service design reduce downtime and maintenance labor.
FLEXIBLE PAYMENT INTEGRATION
supports coin card and mobile payment systems for modern self-service laundromats.

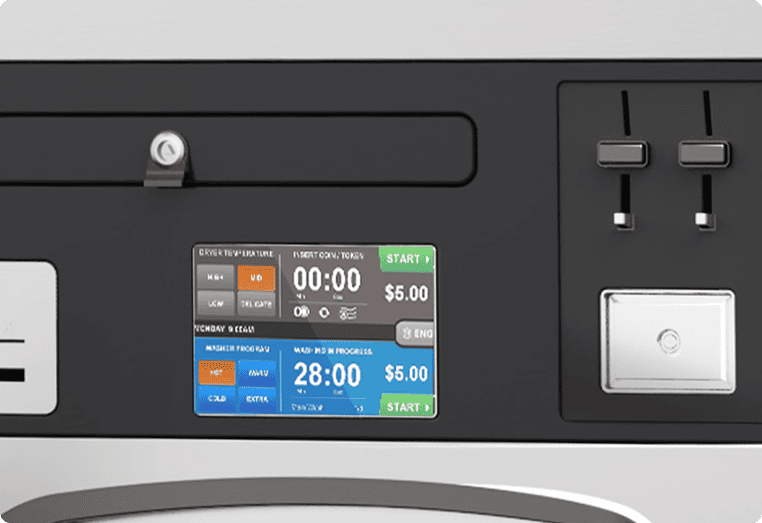

SMART CONTROL SYSTEM
FULL-COLOR TOUCHSCREEN INTERFACE
Easy-to-use multilingual interface designed for laundromat operation.
MULTIPLE PAYMENT COMPATIBILITY
Supports: Coin Card Mobile Payment Central Payment System
ADVANCED AUDIT SYSTEM
Includes: Vend audit data Service diagnostics Remaining cycle indicator
USB & NETWORK CONNECTIVITY
Allows program updates,diagnostics
ENGINEERED FOR COMMERCIAL RELIABILITY

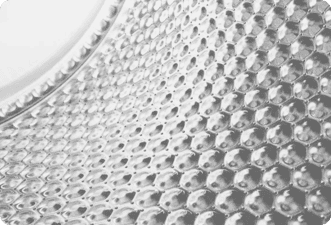

3D HONEYCOMB DRUM DESIGN
Specially engineered perforated lifters improve washing performance while reducing fabric wear.

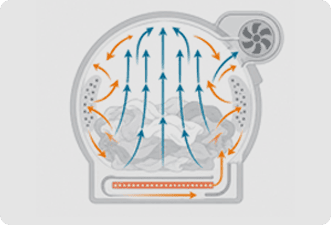

AXIAL-RADIAL AIRFLOW SYSTEM
Optimized airflow design improves drying efficiency and shortens cycle times.

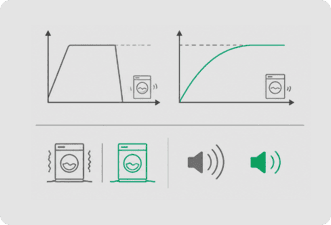

SMART INVERTER DRIVE TECHNOLOGY
Provides smoother acceleration, lower vibration, reduced noise, and better energy efficiency.

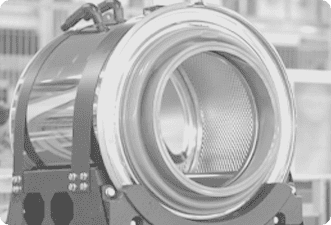

STAINLESS STEEL INDUSTRIAL STRUCTURE
Washer drum, tub, and dryer cylinder are manufactured with industrial-grade stainless steel for long-term durability.
FRONT-SERVICE MAINTENANCE DESIGN
Specially engineered perforated lifters improve washing performance while reducing fabric wear.
FREEDOM TO CHOOSE YOUR PAYMENT PROVIDER
OPEN PAYMENT INTEGRATION
Our vended laundry machines are designed with an open payment architecture, allowing owners to integrate with their preferred payment providers and management systems. Unlike some traditional laundry equipment brands that require proprietary platforms or recurring revenue-sharing models, OASIS gives you full flexibility and ownership.
Card
Coin
QR Code
TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability
DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features
1.Softmount with springs and shock absorbers
2.Washer features the uniquely designed 3D stereoscopic honeycomb-shaped inner drum with perforated lifters
3.Stainless steel washer drum, tub and door
4.Stainless steel dryer cyliner
5.10kg washer utilize direct drive motor without belt and pully
6.Dryer features axial-radial airflow
7.Front lint filter drawer makes clean lint easier.
8.Standard 4 chemical compartments and 5 hoses for dosing pump.
9.Mechanical and electronic double door lock and emergency stop
10.Advanced inverter drive system
11Easy to access service parts from front and back panels
| Specifications | XH10F | XH10F（Drying） | XH15F | XH15F（Drying） | |
|---|---|---|---|---|---|
| Contol | Touch | Touch | Touch | Touch | |
| Activation | OPL/Vend | OPL/Vend | OPL/Vend | OPL/Vend | |
| Washing | Drying | Washing | Drying | ||
| Capacity | kg | 10 | 15 | ||
| Cylinder Diameter | mm | 532 | 658 | 600 | 720 |
| Cylinder Depth | mm | 405 | 500 | 478 | 635 |
| Volume | liter | 90 | 170 | 135 | 258 |
| Door Center to Floor | mm | 543 | 1566 | 643 | 1630 |
| Cold Water Inlet | inch | 1/2 | 1/2 | ||
| Hot Water Inlet | inch | 1/2 | 1/2 | ||
| Drain Diameter(pump/valve) | mm | 22/51 | 51 | ||
| Extraction Speed | RPM | 200-1010 | 200-1025 | ||
| G-force | 303 | 350 | |||
| Reversing Cylinder | Yes | Yes | |||
| Drive motor | kW | 1(DD) | 0.25 | 0.75 | 0.25 |
| Fan motor | kW | 0.25 | 0.25 | ||
| Single phase heating power | kW | 3 | 7.5 | 6 | 10.5 |
| Three-phase heating power | kW | 9 | 7.5 | 9 | 10.5 |
| Gas Inlet | inch | 1/2 | 1/2 | ||
| Exhaust | mm | - | 110 | - | 160 |
| Power Supply | 220V/50Hz/60Hz/1ph 380V/50Hz/60Hz/3ph | 220V/50Hz/60Hz/1ph 380V/50Hz/60Hz/3ph | 220V/50Hz/60Hz/1ph 380V/50Hz/60Hz/3ph | 220V/50Hz/60Hz/1ph 380V/50Hz/60Hz/3ph | |
| Overall Width | mm | 710 | 800 | ||
| Overall Depth | mm | 859 | 994 | ||
| Overall Height | mm | 1937 | 2065 | ||
| Net Weight | kg | 260 | 360 | ||
| Packing Width | mm | 810 | 900 | ||
| Packing Depth | mm | 959 | 1094 | ||
| Packing Height | mm | 2079 | 2215 | ||
| Oasis preserves the right to change the machines and the specification at any time without prior notice. | |||||
Customer Installations
WHY CHOOSE OASIS
FACTORY STRENGTHYOU CAN TRUST
With advanced manufacturing equipment and、strict quality control, OASlS provides reliable laundry equipment to customers worldwide
FAQ
VIEW ALL
300G-350G
yes
Compatible with multiple payment systems Support for card, mobile, QR and app payments No mandatory monthly platform fees No transaction revenue sharing No locked ecosystem Greater long-term operating profitability
YES
2 years
45 days
