XL35

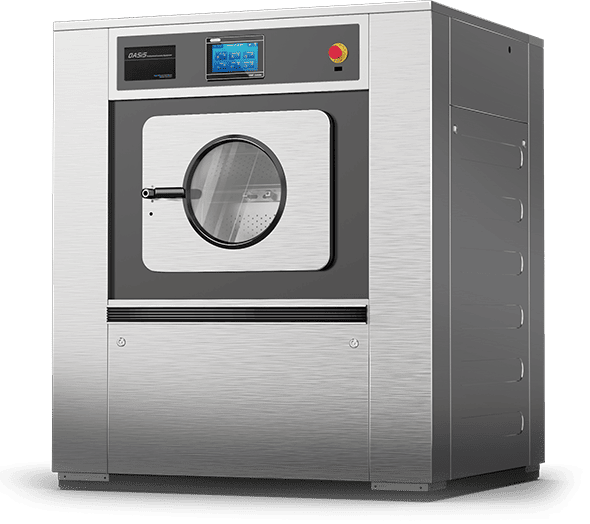

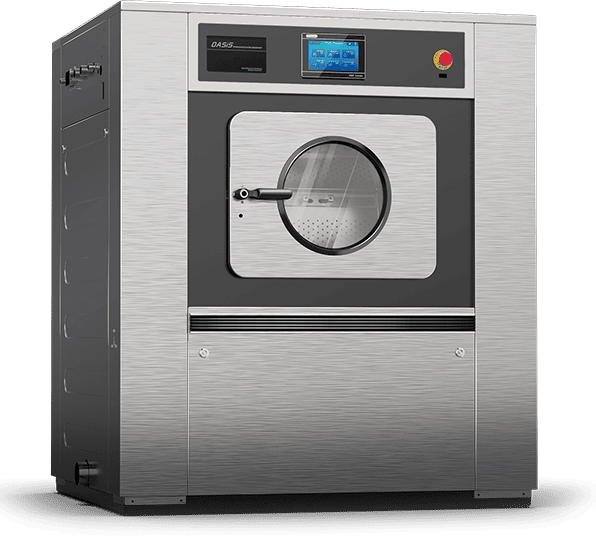

35KG Barrier Washer Extractor
The 35kg Barrier Washer Extractor is designed for hygienic laundry processing environments where strict separation between clean and soiled areas is required. It ensures contamination control through a double-door barrier system, supporting safe and efficient textile handling.
It is widely used in hospitals, healthcare facilities, pharmaceutical plants, laboratories, nursing homes, and cleanroom environments where infection control and hygiene compliance are critical.
It is ideal for laundromats, neighborhood laundry stores, apartment complexes, student housing, hotels, fitness centers, and shared laundry facilities.
35KG
Capacity
250G
Extraction Force
OPL
Applications
TECHNICAL SPECIFICATIONS
Engineered for efficiency. Built for durability
DOWNLOAD FULL DATASHEET
Get the complete technical specifications, detailed drawings and more.
Product Features
1.Clean unloading side is separated from soiled loading side
2.Softmount with air bags, springs, and shock absorbers.
3.Stainless steel drum, tub, and door,
4.Stainless steel panels
5.Permanently lubricated bearings
6.Intelligent electronic balancing system
7.Automatic positioning of the inner drum
8.Standard configuration includes 5 chemical compartments and 5 hoses for dosing pumps.
9.Mechanical and electronic double door locks
10.Heavy duty pnueumatic water valves, drain valves and steam valves
| Specifications | XL35 | XL60 | XL110 | |
|---|---|---|---|---|
| Control | Touch | Touch | Touch | |
| Capacity | kg | 35 | 60 | 110 |
| Cylinder Diameter | mm | 774 | 1065 | 1065 |
| Cylinder Depth | mm | 726 | 760 | 1268 |
| Volume | liter | 341 | 677 | 1129 |
| Door Center to Floor | mm | 936 | 1322 | 1322 |
| Cold Water Inlet | inch | 1 | 1.5 | 1.5 |
| Hot Water Inlet | inch | 1 | 1.5 | 1.5 |
| Steam inlet | inch | 1/2 | 1 | 1 |
| Dosing inlet | inch | 3/4 | 3/4 | 3/4 |
| Compressed air inlet* | mm | 8 | 8 | 8 |
| Drain Diameter | mm | 76 | 125 | 125 |
| Motor Power | kW | 3.5 | 7.5 | 11 |
| Three-phase heating power | kW | 18 | 30 | 45 |
| Extraction Speed | RPM | 760 | 650 | 650 |
| G-Force | 250 | 250 | 250 | |
| Voltage | 380V/50Hz/60Hz/3ph Contact us for other voltages | 380V/50Hz/60Hz/3ph Contact us for other voltages | 380V/50Hz/60Hz/3ph Contact us for other voltages | |
| Overall Width | mm | 1290 | 1592 | 2100 |
| Overall Depth | mm | 1222 | 1448 | 1448 |
| Overall Height | mm | 1496 | 2035 | 2035 |
| Net Weight | kg | 700 | 2110 | 2360 |
| Packing Width | mm | 1390 | 1692 | 2200 |
| Packing Depth | mm | 1322 | 1548 | 1548 |
| Packing Height | mm | 1646 | 2185 | 2185 |
| *Compressed air inlet only applies to steam heating models. | ||||
| Oasis preserves the right to change the machines and the specification at any time without prior notice. | ||||
Customer Installations
WHY CHOOSE OASIS
FACTORY STRENGTHYOU CAN TRUST
With advanced manufacturing equipment and、strict quality control, OASlS provides reliable laundry equipment to customers worldwide
FAQ
VIEW ALL
250G
The machine is installed through a physical wall partition: Soiled linen is loaded from the dirty side, and clean linen is unloaded from the clean room side. Upon cycle completion, the automatic inner drum positioning system automatically aligns and locks the drum door precisely with the clean-side outer door for safe opening.
Yes. Both the inner drum, outer tub, loading doors, and all outer cabinet panels are constructed from high-grade stainless steel, making it exceptionally resistant to harsh chemical disinfectants and compliant with ISO/medical laundry hygiene standards.
